Split Long Arm Paper Roll Clamps - Fujian Huamai Machinery Co., Ltd.

Vantagens do produto

3.0ton forklift attachment split long arm paper roll clamps equipment with China Xinchai C490 engine, hydraulic transmission,USA EATON hydraulic assisted steering valve,SHIMADZU oil pump,full suspension chassis.It is widely used to handing all kinds of goods,such as pallet,steel,brick etc.Shantui has cooperated with KOMATSU more than 30 years,all the product was made under KOMATSU standard.

Motor	Modelo	HUAMAI C490
	Saída classificada	40/2650	Kw / rpm
	Torque avaliado	165/1800	N · m / rpm
	No.of cilindro	4
	Furo × acidente vascular cerebral	90 × 105	milímetros
	Deslocamento	2.7	eu
Dimensões	Levantamento de peso	3000	milímetros
	LxWxH (com / sem garfo)	3779 (2709) x1226x2140	milímetros
	Raio de giro	2450	milímetros
	Ângulo de inclinação do mastro (F / R)	6/12	Grau
atuação	Velocidade de deslocamento (carga total / sem carga)	19/20	Km / h
	Velocidade de elevação (com / sem) carga	420/450	mm / seg
	Max.gradibilidade	20	%
	Auto peso	4560	Kg
Rodas e pneus	Frente	28 × 9-15-14PR
	Parte traseira	6,50-10-10PR
	Distância entre eixos	1700	milímetros
	Afastamento de Min.ground (mastro)	110	milímetros

Vídeos

Detalhes rápidos

Condição: Nova
Place of Origin: HUAMAI, China (Mainland)
Marca: HUAMAI
Tipo: paleteira motorizada
Poder Souce: Motor Diesel
Capacidade de Carga Nominal: 3000kg
Max. Altura de levantamento: 8000mm
Min. Altura de levantamento: 3000mm
Comprimento da Forquilha: 1070mm
Largura da forquilha: 122mm
Dimensões totais: 3829x1226x2140mm
Certificação: ISO9001 / ISO14001 / CE
Serviço pós-venda fornecido: Engenheiros disponíveis para prestar serviços de manutenção no ultramar à maquinaria
Accseeory: multiple load handlers
Paper Roll clamps: China BRAND
Weight OF accessories: 650KGS
Rotatation: 360 degree
MOUNT CLASS: 3 stage
Roll range: 200-1300mm
TYPES: Fixed short arm
Pad type: optional
Pressure: 35-160ba
Loading Capacity: 2ton

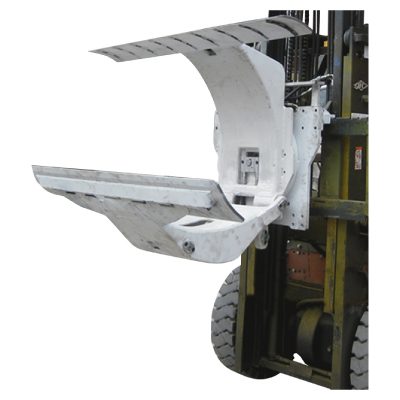

Split long arm paper roll clamps are specialized attachments used for handling and transporting large rolls of paper. They attach to a forklift and hold the rolls securely in place, allowing the operator to easily pick up, move, and place the rolls.

The split long arm paper roll clamps consist of two arms that attach to the forks of the forklift and a clamp mechanism in the center. The arms are designed to split apart, making it easier to place the rolls in the desired position. The clamp mechanism is designed to securely hold the rolls in place, reducing the risk of injury and damage to the load and the environment.

One of the main advantages of the split long arm paper roll clamps is their versatility. They can handle a wide range of large rolls of paper, making them a convenient accessory for a variety of material handling tasks. The split arms also make it easier to transport the rolls, reducing the risk of injury to the operator and other workers.

Another advantage of the split long arm paper roll clamps is their efficiency. They make it easier to handle and transport the rolls, reducing the time and effort required to complete the task. This makes them more cost-effective and time-efficient, saving companies time and money in the long run.

In conclusion, split long arm paper roll clamps are a useful tool for handling and transporting large rolls of paper. They are versatile, efficient, and cost-effective, and are an essential tool for companies that handle heavy loads on a regular basis.
